DNSSEC
Kyle Rankin
Director of Engineering Operations
Artemis Internet, Inc.
Agenda
- Introduction
- How DNS Works
- DNS Security Issues
- How DNSSEC Works
- DNSSEC Terminology
- New DNSSEC Record Types
- DNSSEC Look-aside Validation
- Implementing DNSSEC
- Current DNSSEC Adoption
- DANE
- Questions?
How DNS Works
- Primary job: converting hostnames to IPs
- Client sends request to local DNS server
- "What is the IP for www.greenfly.org?"
- DNS server starts recursive query
- To play at home: dig +trace www.greenfly.org.
Tracing a Recursive Query
- ns1.someisp.com to root: www.greenfly.org?
- root to ns1.someisp.com: I don't know, ask a org nameserver. Here are their addresses...
- ns1.someisp.com to org: www.greenfly.org?
- org to ns1.someisp.com: No clue, but ns1.greenfly.org and ns2.greenfly.org know about it. Here are their addresses...
- ns1.someisp.com to ns2.greenfly.org: www.greenfly.org?
- ns2.greenfly.org to ns1.someisp.com: 64.142.56.172
- ns1.someisp.com to OS: 64.142.56.172
- OS to browser: 64.142.56.172
DNS Security Issues
- DNS designed to be an open, friendly service
- DNS queries and responses are not encrypted
- Domain names sometimes look alike (google.com vs googIe.com)
- Companies can't always register their name on all TLDs (artemis.com)
- Many DNS servers (open resolvers) will perform recursive queries for anyone who asks
- Open resolvers heavily used in modern DNS amplication DDOS attacks
- DNS subject to MitM attacks
- DNS spoofing/cache poisoning attacks.
DNSSEC Addresses
- DNS designed to be an open, friendly service
- DNS queries and responses are not encrypted
- Domain names sometimes look alike (google.com vs googIe.com)
- Companies can't always register their name on all TLDs (artemis.com)
- Many DNS servers (open resolvers) will perform recursive queries for anyone who asks
- Open resolvers heavily used in modern DNS amplication DDOS attacks
DNS subject to MitM attacksDNS spoofing/cache poisoning attacks.
How DNSSEC Works
- Some similarities with CA system
- Uses public-key cryptography to sign every DNS record for a zone
- DNS servers generate key pair, sign records with private key
- Root DNS servers have key pair, DNSSEC-enabled
- DNSSEC-enabled TLDs get key signatures signed, published by root DNS
- DNSSEC-enabled zones get key signatures signed, published by TLD
- DNSSEC-capable resolvers anchor trust in root DNS keys
- When DNSSEC records resolve, chain of trust is followed
- If record tampered with, signature won't match
- If record doesn't exist, absence is also signed.

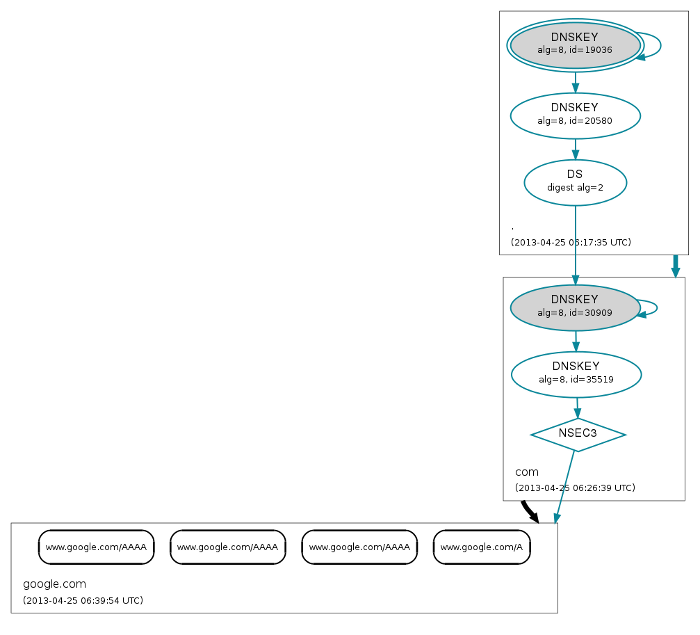

Trust graph for www.google.com
DNSSEC Terminology
- RR - Resource Record: smallest unit of data in a zone (A, NS...)
- RRSET - Complete Set of Resource Records (all NS records or A records for a name)
- KSK - Key-Signing Key. Signs DNSKEY records in a zone
- ZSK - Zone-Signing Key. Signs all of the other records in a zone
- SEP - Secure Entry Point. Flag set in key to denote it as a KSK
- Separate KSK, ZSK not required, but best practice
- Allows larger KSK, easier rotation of ZSKs.
New DNSSEC Record Types:
- DNSKEY - A public key for the zone, either KSK or ZSK
- RRSIG - Resource Record Signature, contains a signature for an RRSET
- NSEC - Next Secure, used in "negative answers" to prove whether a name exists or not
- NSEC3 - Next Secure (version 3). Like NSEC, protects against "zone walking"
- DS - Delegation Signer. Contains KSK signature and submitted to zone parent as part of chain of trust
- DLV - DNSSEC Look-aside Validation. Much like DS records, used when DS records not supported.
DNSSEC Look-aside Validation
- Work-around solution until DNSSEC is fully adopted by TLDs
- Or if a registrar doesn't support DNSSEC
- Changes trust anchor from root to a third-party, like dlv.isc.org
- Requires DNS resolvers to add/trust third-party keys.

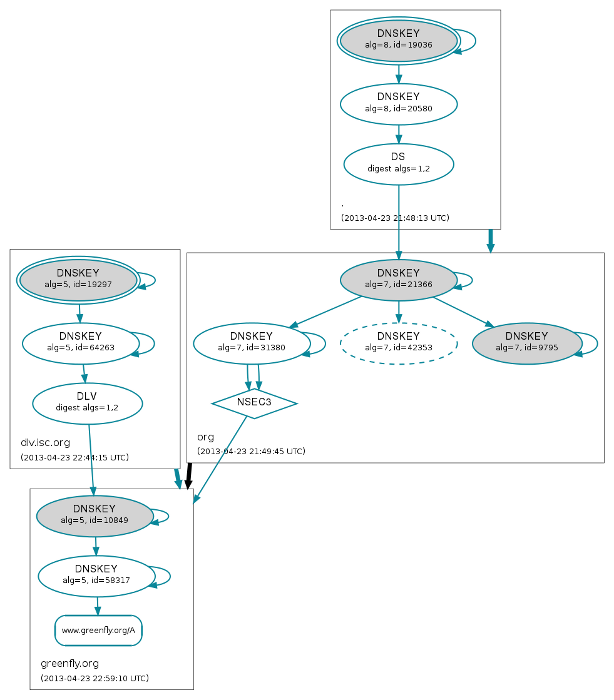

Trust graph for www.greenfly.org
Implementing DNSSEC
$ dnssec-keygen -a RSASHA1 -b 2048 -n ZONE -f KSK greenfly.org
$ dnssec-keygen -a RSASHA1 -b 1024 -n ZONE greenfly.org
Include references to keys in zone file (db.greenfly.org):
$INCLUDE Kgreenfly.org.+005+10849.key ; KSK
$INCLUDE Kgreenfly.org.+005+58317.key ; ZSK
Sign the zone using KSK and ZSK:
dnssec-signzone -o greenfly.org -k Kgreenfly.org.+005+10849 \
db.greenfly.org Kgreenfly.org.+005+58317.key
Or if using DLV:
dnssec-signzone -l dlv.isc.org -o greenfly.org -k Kgreenfly.org.+005+10849 \
db.greenfly.org Kgreenfly.org.+005+58317.key
Implementing DNSSEC Continued
- Configure BIND to use signed zone:
zone "greenfly.org" {
type master;
file "/etc/bind/db.greenfly.org.signed";
allow-transfer { slaves; };
};
Enable DNSSEC in BIND masters and slaves:
options {
dnssec-enable yes;
dnssec-validation yes;
};
To validate DLV zones, add additional BIND option and trusted key:
options { dnssec-lookaside . trust-anchor dlv.isc.org.; };
trusted-keys {
dlv.isc.org. 257 3 5 "BEAAAAPHMu/5onzrEE7z1egmhg/WPO0+juoZrW3euWEn4MxDCE1+lLy2 brhQv5rN32RKtMzX6Mj70jdzeND4XknW58dnJNPCxn8+jAGl2FZLK8t+ 1uq4W+nnA3qO2+DL+k6BD4mewMLbIYFwe0PG73Te9fZ2kJb56dhgMde5 ymX4BI/oQ+cAK50/xvJv00Frf8kw6ucMTwFlgPe+jnGxPPEmHAte/URk Y62ZfkLoBAADLHQ9IrS2tryAe7mbBZVcOwIeU/Rw/mRx/vwwMCTgNboM QKtUdvNXDrYJDSHZws3xiRXF1Rf+al9UmZfSav/4NWLKjHzpT59k/VSt TDN0YUuWrBNh";
};
Sample DNSSEC Query Result
$ dig +dnssec www.greenfly.org
; <<>> DiG 9.8.1-P1 <<>> +dnssec www.greenfly.org
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 13093
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 3, ADDITIONAL: 5
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags: do; udp: 4096
;; QUESTION SECTION:
;www.greenfly.org. IN A
;; ANSWER SECTION:
www.greenfly.org. 900 IN A 64.142.56.172
www.greenfly.org. 900 IN RRSIG A 5 3 900 20130523213855 20130423213855 58317 greenfly.org. cZS1G2Jj3FNB0UrU4W+LbpCJlvVa+3yos1ni5V0pct4x4lWvXGQNoh1G /uFFJ62YRYXskL/c17wiAEIqsJ0O/wzek5KFWAoiJ3zW051l9c/8KPGF 7LzmEumdAVM2MmrPVu+PKGfilPlfofjwJLbgVhyYqepbbD8xv3bmg0Np YnM=
;; AUTHORITY SECTION:
greenfly.org. 900 IN NS ns2.greenfly.org.
greenfly.org. 900 IN NS ns1.greenfly.org.
greenfly.org. 900 IN RRSIG NS 5 2 900 20130523213855 20130423213855 58317 greenfly.org. d/7E3iCxzS/qBSOl/x7m/yMMqbl5mUGH7tVw/j7U/qyC7D9YZJIXNp3J uU8vueo09cZf+yjwHusdWDWgdW8mkAVoGR5K/azoY4o2xRBvt8Z5pf3a BqmNIHzROZkf6BOrx6Nqv65npSGoNLQBoEc90FvDFe/N5I27LBTIxCv4 3UQ=
;; ADDITIONAL SECTION:
ns1.greenfly.org. 900 IN A 64.142.56.172
ns2.greenfly.org. 900 IN A 75.101.46.232
ns1.greenfly.org. 900 IN RRSIG A 5 3 900 20130523213855 20130423213855 58317 greenfly.org. VDeJSlfEYRwHkjRnCvmDXFHneG3Fhw15mCSALT8m8fOtQkMroI8t0qu3 K8Tdt4q8/t1JYucpwQbpjsR3f+rmJc0t4L7HSVA/1LHajOqA+Wn2XH8L Rp01qVkeBIZ7g+K7LY2XRU3DGSzbeFUKrViqtakbTQxZ9o3Oj6ZqL0Pv 0nQ=
ns2.greenfly.org. 900 IN RRSIG A 5 3 900 20130523213855 20130423213855 58317 greenfly.org. dUU/6bbc6sHoSl+e2uGwoEXLMGyr4Qaedk3E74ArnUOb4VViBd3CxvGF SPG2QK3AggDv8z3+9Wm6NA11oTFcuIGnbBarxDQIrbERHFfcSQaekvSR UcSSD7wft9YO7UTIiQrc8LkItXZAKd72Gy1ZP4mhhLxwwOIhlHshQ9d2 uTY=
;; Query time: 196 msec
;; SERVER: 64.142.56.172#53(64.142.56.172)
;; WHEN: Fri Apr 26 16:13:22 2013
;; MSG SIZE rcvd: 817
Current DNSSEC Adoption
- DNSSEC Deployed at root zone on July 15, 2010
- 463 Total TLDs in root zone
- 271 TLDs are signed
- 265 TLDs have trust anchors published as DS records in the root zone
- 4 TLDs (.ee, .kg, .th, .ua) also have trust anchors published in the ISC DLV Repository
- (Data from ICANN TLD DNSSEC report accurate as of 2014-02-22.)
DANE
- DANE (DNS-based Authentication of Named Entities) proposed on top of DNSSEC
- Defined in RFC 6698
- DANE authenticates TLS w/o CAs using DNSSEC-signed keys
- Shifts trust from CAs to root DNS, TLDs, and DNS admin
- Supported in Chrome since 2011
- Supported in Firefox with add-on.
